CMS IntelliCAD Ribbon Interface

CMS IntelliCAD User Interface - the unified ALL-IN interface.

Users can work with the IntelliCAD window and its elements in a variety of ways. For example, you can display and rearrange the toolbars, display the command bar, and enable the status bar. The toolbars and command bar can also be floated anywhere on the screen or docked to the edges of the main IntelliCAD window.

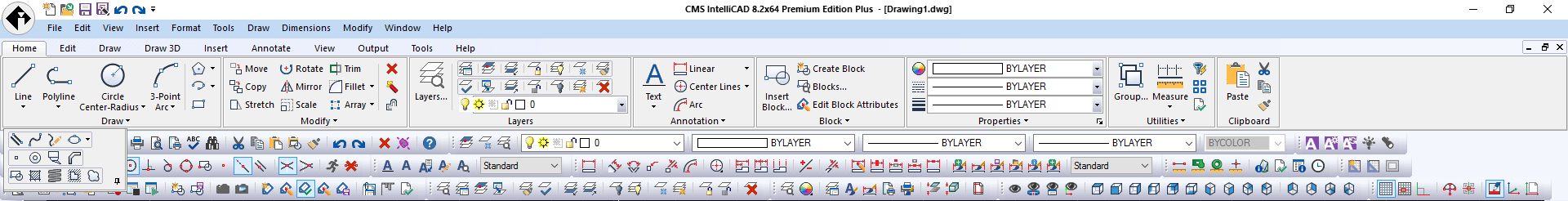

With CMS IntelliCAD user can combine both floating toolbars and menus with the new CMS IntelliCAD ribbon interface.

Switching tabs can also be quickly accomplish by rotating the mouse wheel while the mouse pointer is over the Ribbon Commands tab.

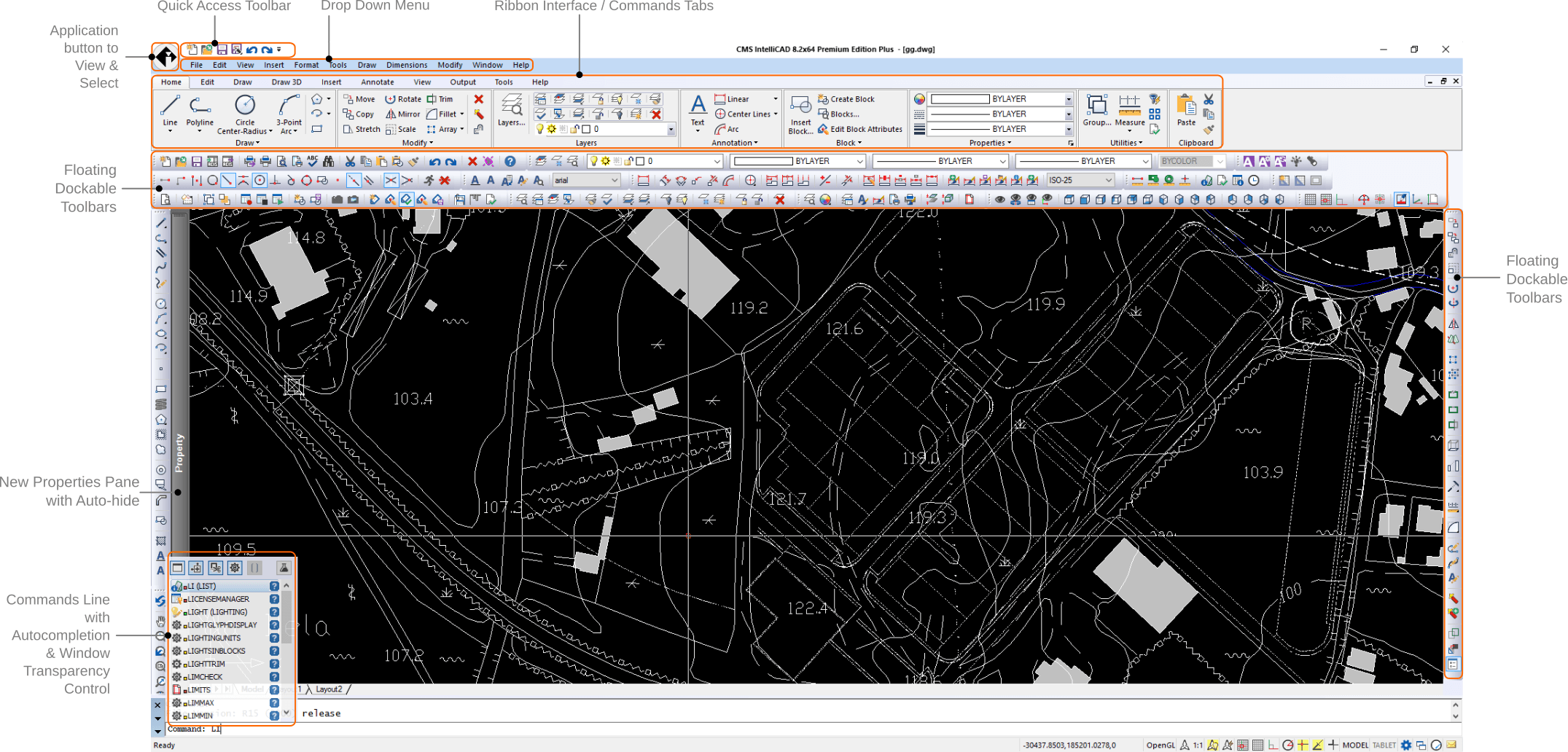

The CMS IntelliCAD®  ribbon contains several areas from which to choose commands: Ribbon Application button, Quick Access toolbar and Tabs. Note that some few features are ONLY available at the PE Plus edition.

• Application button — The Application button in the upper left corner contains file-related commands, such as New, Open, Import, Export, and more.
• Quick Access toolbar — Contains common commands. Click the Quick Access toolbar down arrow to choose which commands display and to customize various visual elements of the drawing window.
• Tabs — Contains related commands grouped together, for example, on tabs named Home, Edit, Draw 2D, etc.

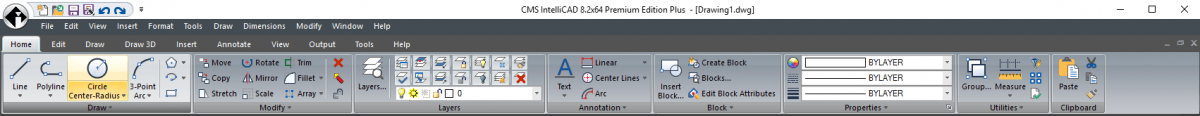

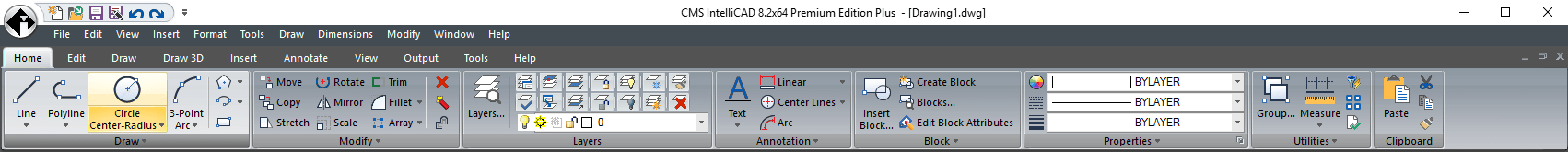

At this main tab, users have access to the main, and most used, entity creation and editing features. Draw lines, curves, circles, modify entities, insert text, annotate and insert dimensions, create, insert and edit cad blocks, control layer features and share or transfer entities through Windows clipboard

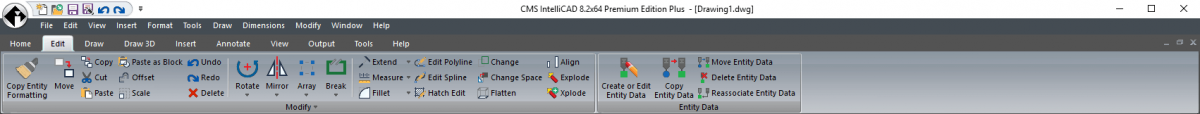

EDIT tab allows entity editing

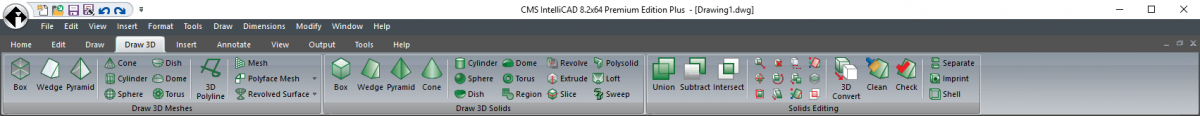

Draw & Draw 3D (Solids on PE Plus edition only)

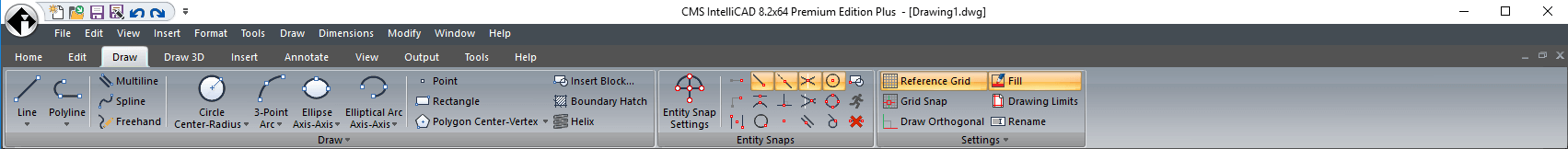

DRAW tab allows users to control how entities are created. Major drawing entity creation, entity snaps, entity settings, 3D meshes, solids and solids editing are available at these tabs.

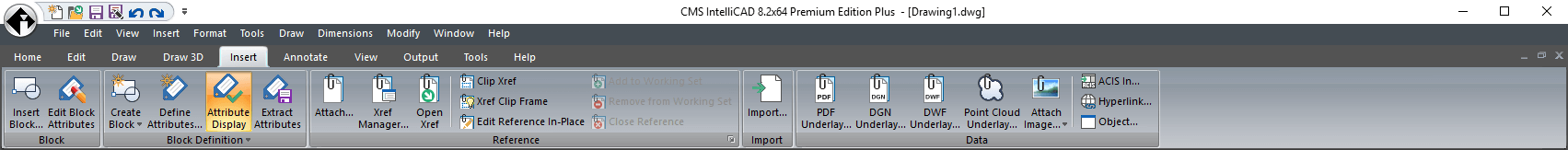

INSERT tab allows the insertion and control of external references and files.

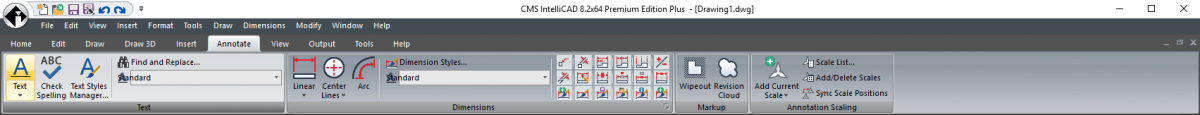

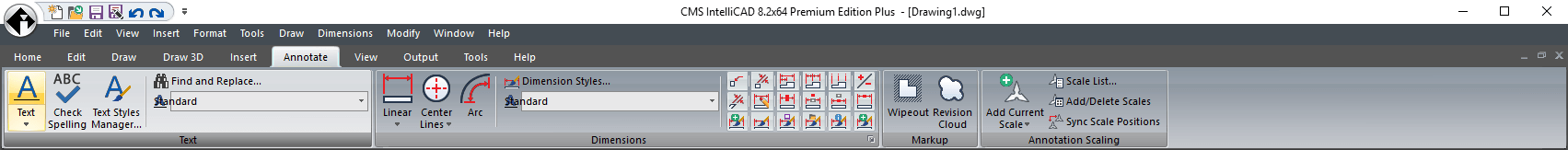

At ANNOTATE tab users are able to create, edit and control text entities, insert all sort of dimensions including styles editing, revision cloud and wipeout markups, add and edit annotation scaling.

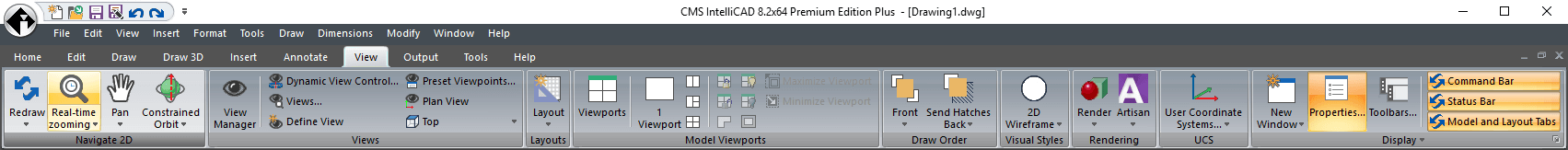

The VIEW tab allos users to control how to navigate and view drawing and entities. Preset views, Dynamic views, Layouts, View-ports, edit entities DRAW ORDER, set the visual style, render a 3D scene, set UCS and control display features

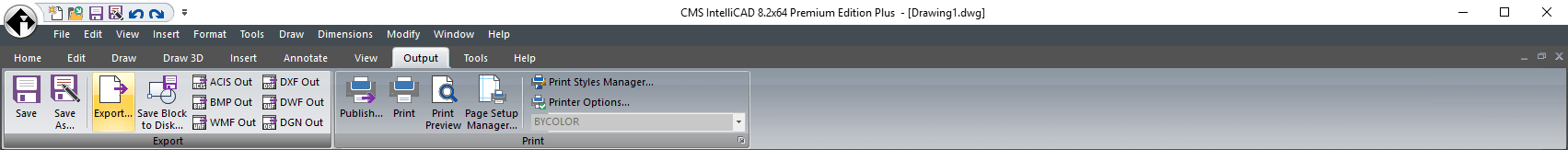

File Export and Plot features are available at the OUTPUT tab. Exporting drawing fle or entities to *.DXF, DWF, SAT, BMP, WMF, EMF, PDF, SVG, STL and DAE file formats. PLOT through PUBLISH or PRINT, and set or manage print style are features available at this tab.

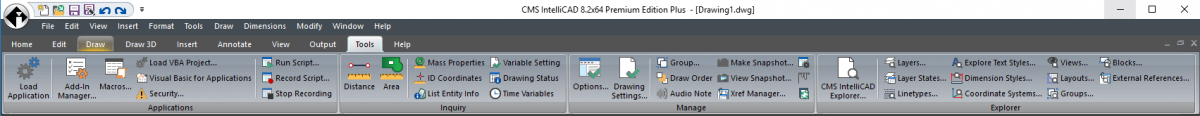

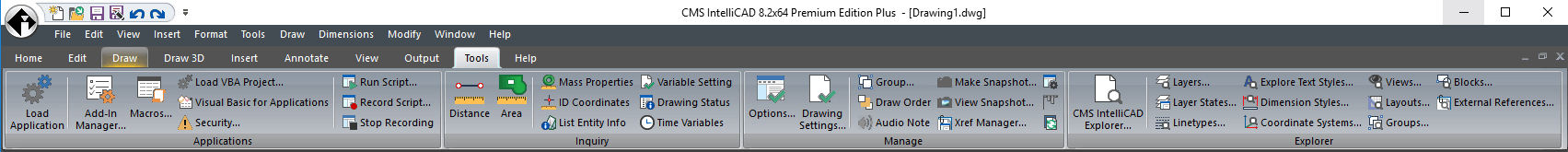

TOOLS tab gives access or runs custom applications development such as Microsoft VBA or .NET, LISP, IRX, SDS. Tools tab also is able to inquiry drawing entities like AREAS, MASS PROPERTIES, etc. or define variable settings. Manage drawing settings, external references and customize user menus, toolbars, keyboard shortcuts and alias. Major EXPLORE features are also available at the TOOLS tab.

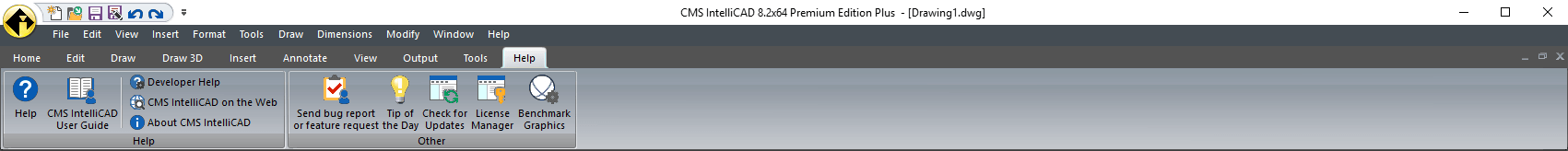

With the HELP tab, users are able to get technical support through the built-in help feature, full PDF printable user guide (some features are only available at the full PE Plus edition), use the Bug submitting form, and also check for version updates or access the license manager. Users can also benchmark their graphics devices here.
